德國 RAFI 各式元件

請看 Pushbuttons & Switches

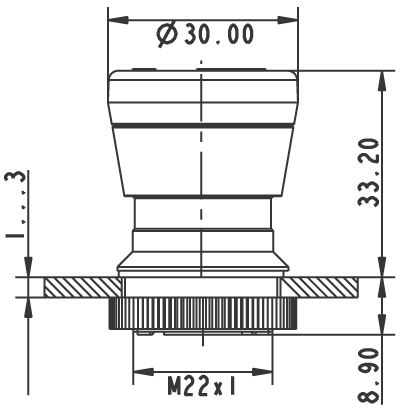

Lumotast 22 from RAFI: space-saving emergency stop pushbutton with redundant NC contact

RAFI presents space-saving Lumotast 22 emergency stop pushbuttons.

Low mounting depth of 17.9 mm
Mounting holes 22.3 mm from the front and fastened from the rear by ring nut.
With 0.8 mm tab terminals.

Lumotast 22 pushbuttons are supplied with three versions:
one redundant NC contact,
one redundant NC contact and one NO contact,
one redundant NC contact and white LED arrow illumination
Unlocked by turning it left or right.
Thanks to its conical shape, the pushbutton cannot be blocked by jammed objects.
Comply with DIN EN ISO 13850 and have protection type IP 65.

(型錄 in pdf 1.22MB)

download [Data Sheet] 179KB

請看 MICON 5, SMD version on PCB

SMD-J or THT terminals Only 5.1 x 6.4mm, 高度僅3.85mm With illumination option: 1 or more LEDs Use under keycaps or membrane overlay Op. force: 2.7 to 6.9N Optimum tactile & acoustic feedback: Distinct click Hermetically sealed contact system Reliable gold / gold contacts Up to 1,000,000 operations

德國 RAFI 高品質機電控製開關, 適合 工業級用途 [Benz, Porche, VW]也都使用 RAFI 的開關

• Mounting hole diameter: 22.3 mm to IEC 60947
• Contact blocks with gold or silver contacts
• Depth behind panel only 9.2 resp. 27 mm
• Protection class min. IP65 acc. to DIN EN 60529
• 2 collar shapes, round or square
• The PCB contact blocks can be combined with other components on the same PCB.
• Contact blocks with quick connectors and LED clips
• All products are RoHS compliant.

德國 RAFI 高品質機電控製開關, 適合電梯面板等工業級用途

德國 RAFI keyswitches 機電控製開關 方便 可靠 堅固 耐用

正方型開關主體 (不含顏色鏡片) Order no. without lens 1.15.114.906/0000
Heidelberg, MAN Roland 皆可使用

Rafi 工業用鍵盤

Operating life > 1,000,000 actuations IP65, IP68 protection 19" rack installation
